Cold Room Insulated Panels: How They Work

Understanding Cold Room Insulated Panels: How They Work is essential for anyone learning cold storage engineering. Refrigeration equipment creates cooling, but the insulated envelope keeps that cooling inside. Therefore, correctly selected panels reduce heat gain, stabilize room temperature, control condensation, and lower compressor workload. For technicians, buyers, consultants, and facility teams, panel engineering deserves the same attention as refrigeration equipment.

What Does a Cold Room Insulated Panel Do?

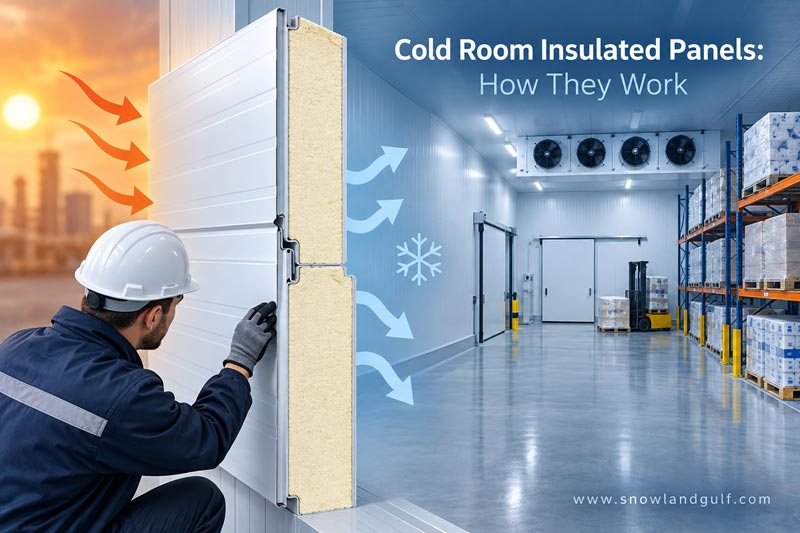

A cold room panel is a sandwich structure with an insulating core between protective metal facings. Usually, manufacturers use PUR, PUF, or PIR because these materials provide high thermal resistance without excessive wall thickness.

In simple terms, Cold Room Insulated Panels: How They Work comes down to slowing unwanted heat flow. Meanwhile, the metal skins protect the insulation, create a hygienic surface, and add strength.

A cold room does not stay cold because of refrigeration alone. Instead, the refrigeration system removes heat while the panels restrict how quickly heat returns.

Why Does Insulation Matter?

Every refrigerated room receives heat from products, people, lights, door openings, air leakage, and the surrounding environment. However, heat also travels continuously through walls, ceilings, and floors.

Engineers call this transmission load. Therefore, insulation type, panel thickness, joint quality, room temperature, and ambient temperature influence the refrigeration load.

This matters greatly in a cold room UAE project because high summer temperatures increase the temperature difference across the panel. Likewise, cold storage Dubai facilities often combine high ambient heat with frequent loading activity.

For training purposes, Cold Room Insulated Panels: How They Work should always connect insulation performance with refrigeration capacity.

Panel Construction and Core Materials

A typical insulated panel has an internal facing, a rigid insulation core, and an external facing. Food-grade coated steel suits many food applications, while stainless steel may suit areas needing stronger corrosion resistance or more intensive cleaning.

The insulation core performs most of the thermal work. However, the facings protect it from moisture, impact, cleaning chemicals, and everyday handling.

PUR and PIR both provide effective insulation. However, PIR generally offers improved fire performance compared with conventional PUR, so designers may prefer it where project fire requirements are more demanding.

Snowland currently identifies PUR/PIR as core options within its insulated sandwich panel manufacturing range.

How Does Panel Thickness Affect Cooling?

Thicker insulation generally provides greater resistance to heat transfer. However, engineers should not select panel thickness simply because a particular thickness worked on another project.

Instead, room temperature, outdoor temperature, thermal conductivity, operating hours, humidity, floor construction, product load, and application should influence the decision.

For example, a positive-temperature chiller normally needs less insulation than a low-temperature freezer. Meanwhile, blast chillers and freezers often require a stronger thermal envelope because they operate at lower temperatures and handle demanding pull-down loads.

Snowland's current corporate literature lists panel thickness options from 60 mm to 150 mm. Still, engineers should select the final thickness according to actual project conditions.

That is a key lesson in Cold Room Insulated Panels: How They Work: thickness affects transmission heat gain, but the complete cold-room system determines actual performance.

Why Are Panel Joints Critical?

Even an excellent insulated panel can perform poorly when installers leave weak or open joints. Consequently, installation quality matters almost as much as the insulation material itself.

Many modular cold-room systems use tongue-and-groove joints, cam locks, gaskets, or specially sealed panel connections. As a result, the completed envelope restricts warm-air leakage and moisture movement.

A modular coldroom also benefits from accurate panel alignment because technicians can assemble, dismantle, or modify it more easily. Similarly, a combi coldroom requires careful thermal separation between its chilled and frozen sections.

Therefore, Cold Room Insulated Panels: How They Work also means understanding that every panel joint forms part of the thermal barrier.

Moisture, Vapour and Thermal Bridges

Warm air carries moisture. Therefore, if humid air enters through an unsealed panel joint, pipe opening, door frame, or cable penetration, condensation can develop.

If the surface temperature falls below freezing, that moisture may turn into ice. Consequently, poorly sealed areas can create icing, corrosion, hygiene problems, damaged finishes, and reduced insulation performance.

Installers should carefully seal pipe entries, electrical penetrations, doors, corners, ceiling joints, and floor interfaces.

Thermal bridges create another problem. For example, poorly designed steel members can conduct heat through the room envelope much faster than the surrounding insulation.

So, anyone studying Cold Room Insulated Panels: How They Work should inspect construction details rather than looking only at panel thickness.

Where Are Insulated Panels Used?

Insulated panel technology supports almost every part of the modern cold chain.

A visi coldroom, for example, may combine insulated wall panels with glass merchandising doors. Meanwhile, a medical coldroom may require hygienic finishes, close temperature control, monitoring, alarms, and carefully sealed penetrations.

Likewise, insulated panels form the thermal enclosure for refrigerated containers, a skid mounted cold room, refrigerated warehouses, pre-cooler cold rooms, ripening chambers, and container coldrooms.

However, engineers must adapt insulation thickness, doors, flooring, surface finishes, and refrigeration capacity to each application.

In larger industrial refrigeration projects, insulated rooms may operate with central ammonia refrigeration systems. Meanwhile, certain processing facilities use glycol & water chillers as part of secondary cooling systems.

This wide application range explains why Cold Room Insulated Panels: How They Work matters from small walk-in rooms to large refrigerated distribution centres.

Energy Efficiency Starts with the Cold Room Envelope

Insulation does not generate refrigeration. Instead, it reduces the rate at which unwanted heat enters the refrigerated space.

Therefore, an efficient thermal envelope can reduce compressor workload, stabilize temperature, and support faster recovery after loading operations.

However, good panels cannot compensate for excessive door opening, poor evaporator airflow, undersized refrigeration equipment, incorrect controls, or badly maintained door gaskets.

Consequently, Cold Room Insulated Panels: How They Work must always be studied as part of one complete refrigeration system.

Installation Checks for Technicians

Technicians should inspect panel edges, joint alignment, seals, corners, service penetrations, floor-to-wall connections, steel interfaces, ceiling joints, and door frames.

In addition, installers should protect exposed insulation after cutting panels and confirm that each panel sits straight and locks completely into the adjoining section.

Before commissioning, supervisors should inspect the complete room envelope while access remains easy. Therefore, fixing a small gap before refrigeration startup can prevent major condensation or icing problems later.

From a practical training perspective, Cold Room Insulated Panels: How They Work includes installation workmanship because insulation performance depends heavily on what happens at site.

A professional cold room manufacturer or cold storage manufacturer should treat panel workmanship as a refrigeration-performance issue rather than simply an architectural finishing activity.
